All-Sun EM285 Features:

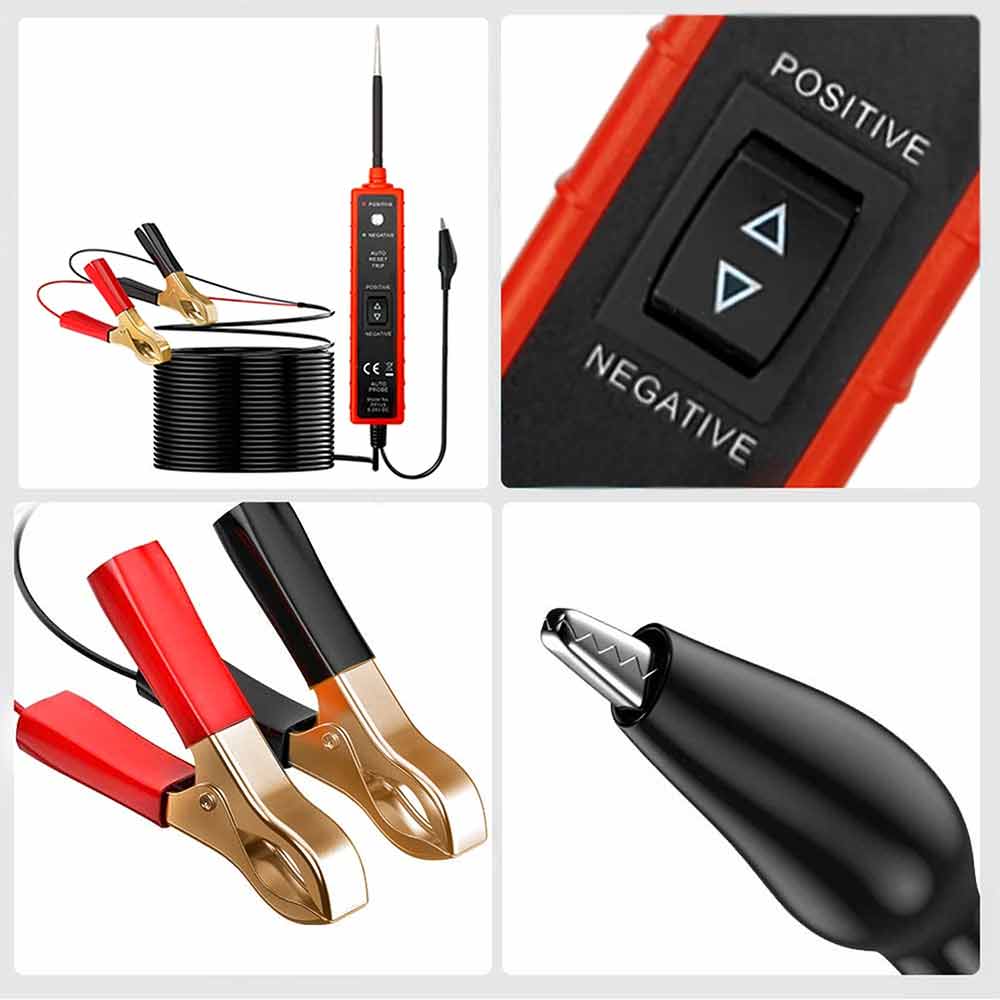

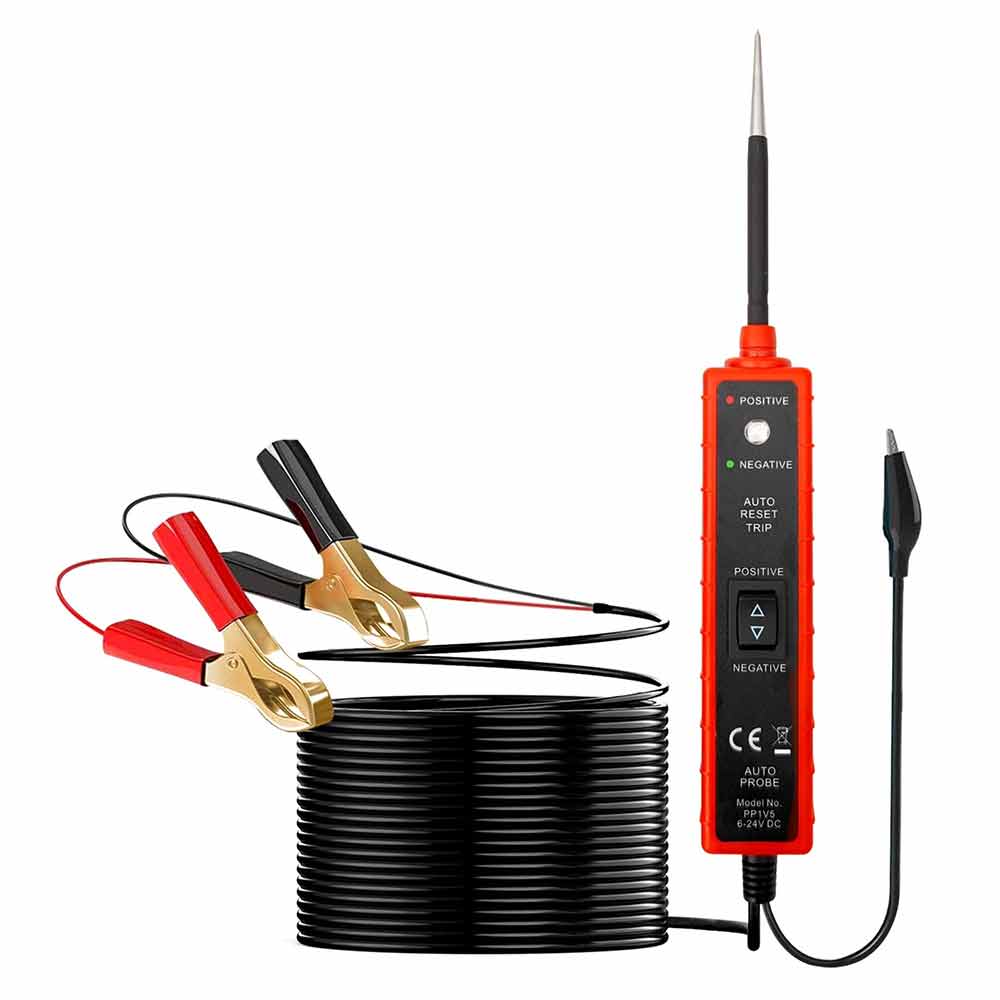

The All-Sun EM285 is the best electrical tester for reducing diagnostic time in automotive electrical systems. Its long cable makes testing easy.

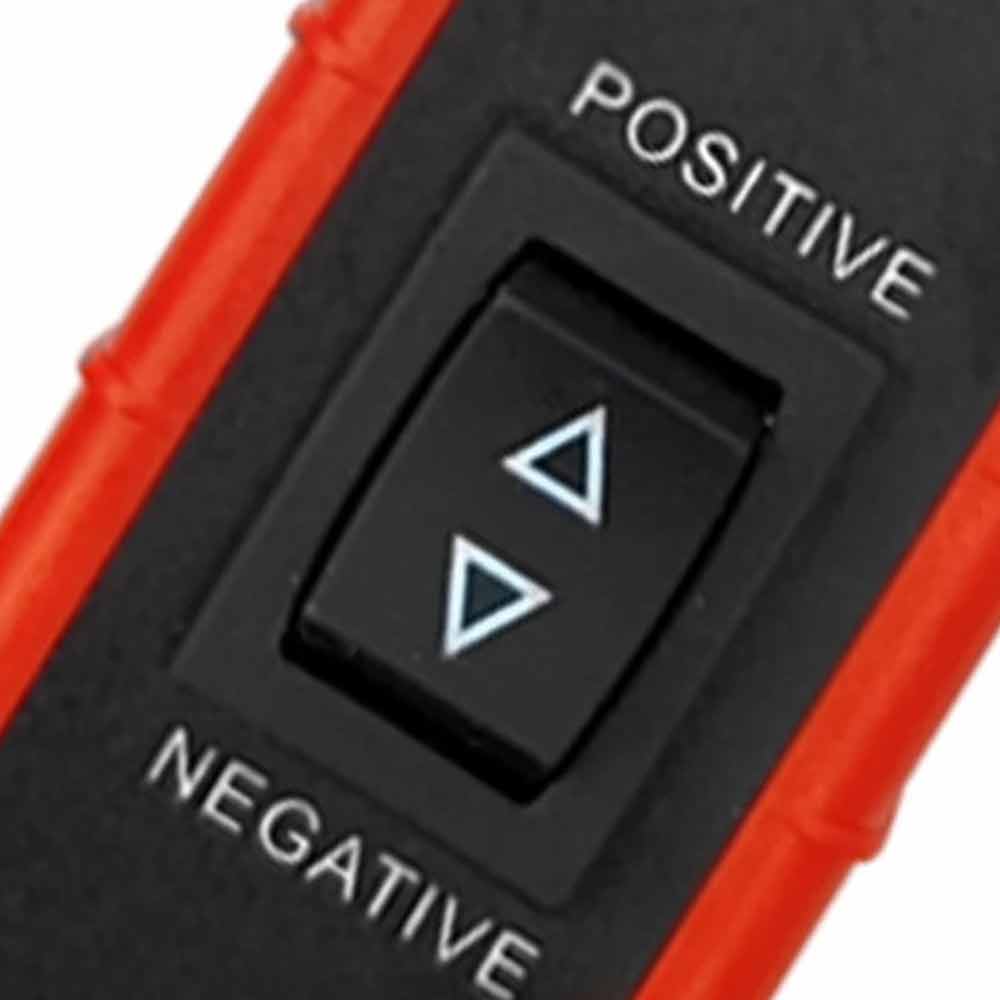

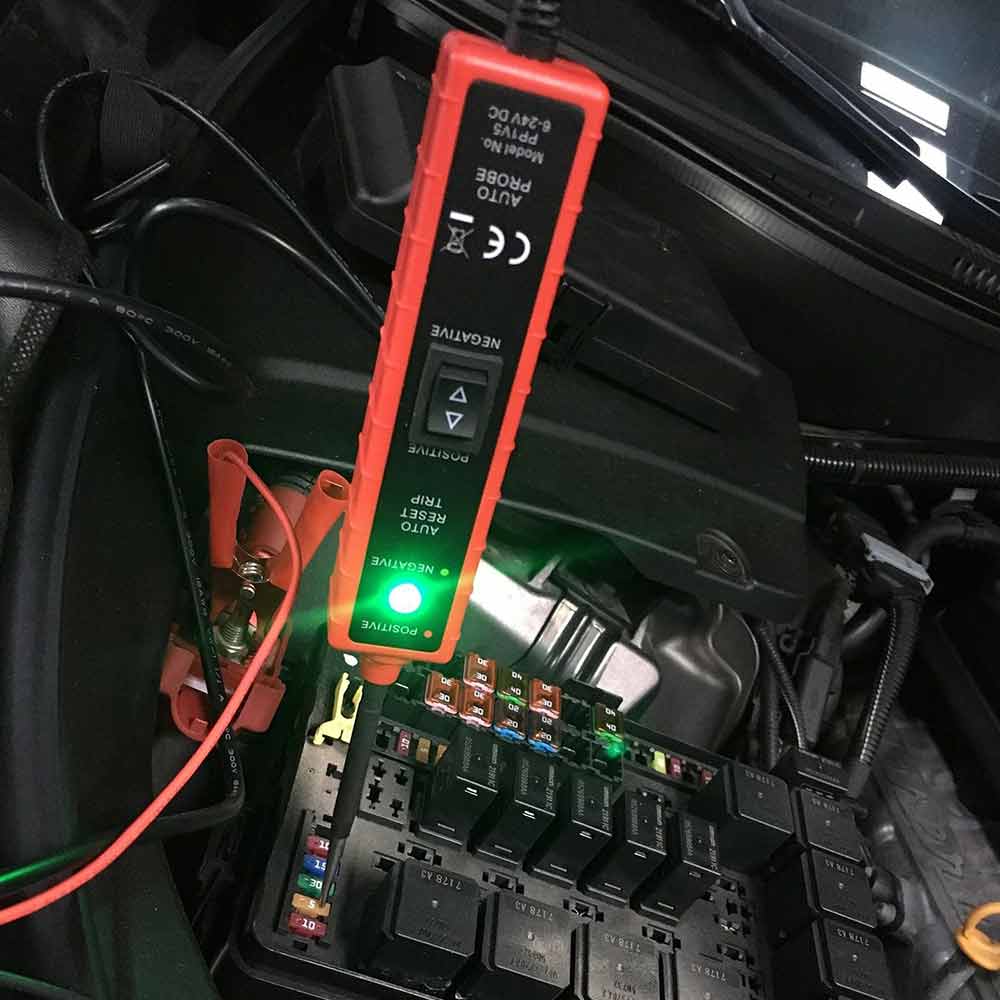

After a simple connection to the vehicle's battery, an automotive technician can conduct a positive or negative battery current to the tip by rocking the power switch forward or backward.
The unit features short-circuit protection and can instantly test for bad ground contacts. It allows you to track and locate short circuits. It can also test for continuity with the assistance of its auxiliary ground lead.
This is a comprehensive 6-24V DC test kit.

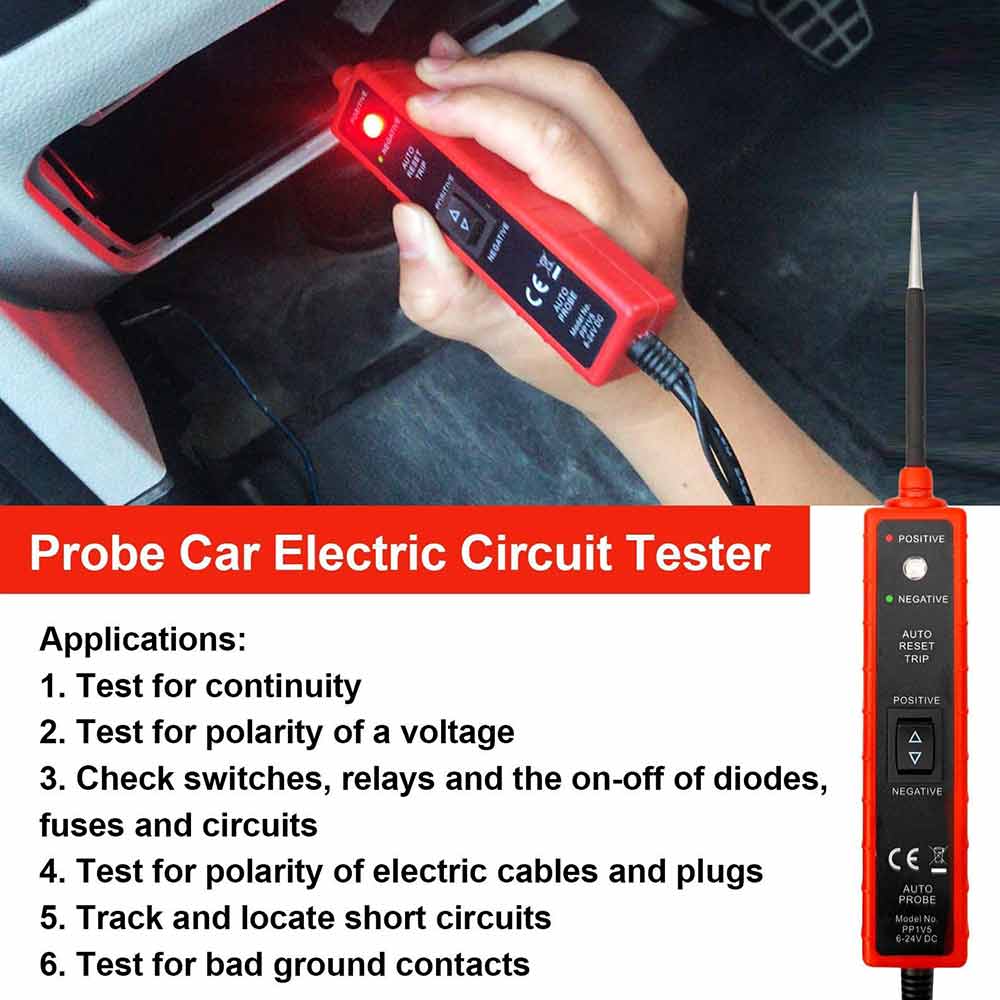

All-Sun EM285 Applications:
-
Test for continuity
-
Test for voltage polarity
-
Check switches, relays, diodes, fuses, and circuit on/off status
-
Test the polarity of electric cables and plugs
-
Track and locate short circuits
-
Test for bad ground contacts
All-Sun EM285 Operation Instruction:
-
Unroll the unit's cable.
-

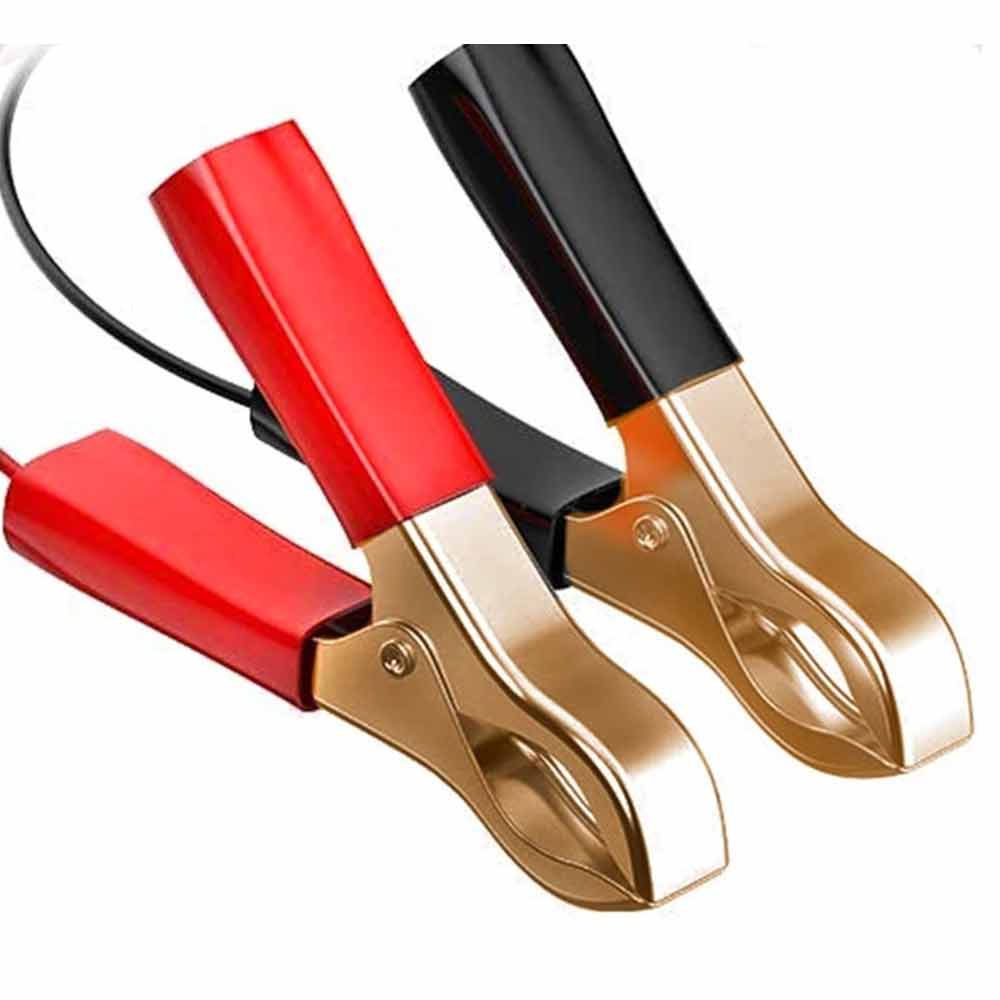

Clamp the red clip to the positive terminal of the vehicle's battery.
-
Clamp the black clip to the negative terminal of the vehicle's battery.
All-Sun EM285 Specification:
Do's and Don'ts:
-
Do not use the item around explosive gas, vapor, or dust. Pressing (or rocking) the power switch conducts battery current directly to the tip, which may cause sparks when contacting ground or certain circuits.
-
This unit is only for use with 6-24V DC systems. Do not use it with 110V/220V house current.
-
Do not use on AC voltage.
-
After finishing checking the vehicle, correctly restore all connections that were disconnected.
-
Always follow the instructions and procedures in the vehicle's service manual before attempting to disconnect any part of the electrical circuit.
-
For safety, never touch any dangerous part of the vehicle with your hand. Do not touch any live conductor with your hand or skin.
-
Do not use the item if it is damaged.
-
Some vehicle components operate on low voltage and cannot withstand the voltage applied by this item. To avoid damaging these components, do not use this item to apply voltage to them directly or indirectly.
-
Before driving, always ensure the vehicle is safe and reliable.
-
Do not use this item while driving.
Tips:
-
An alarm sound indicates that the circuit breaker has tripped.
-
After tripping, the circuit breaker will reset automatically within 3 to 5 seconds.
-
If the alarm sounds and the item remains connected to the test object while you continue to press the power switch, the circuit breaker will repeatedly trip and reset automatically.
